快投派 - Why Choose QuattroPod

QuattroPod比其他无线投屏解决方案具有更多优势

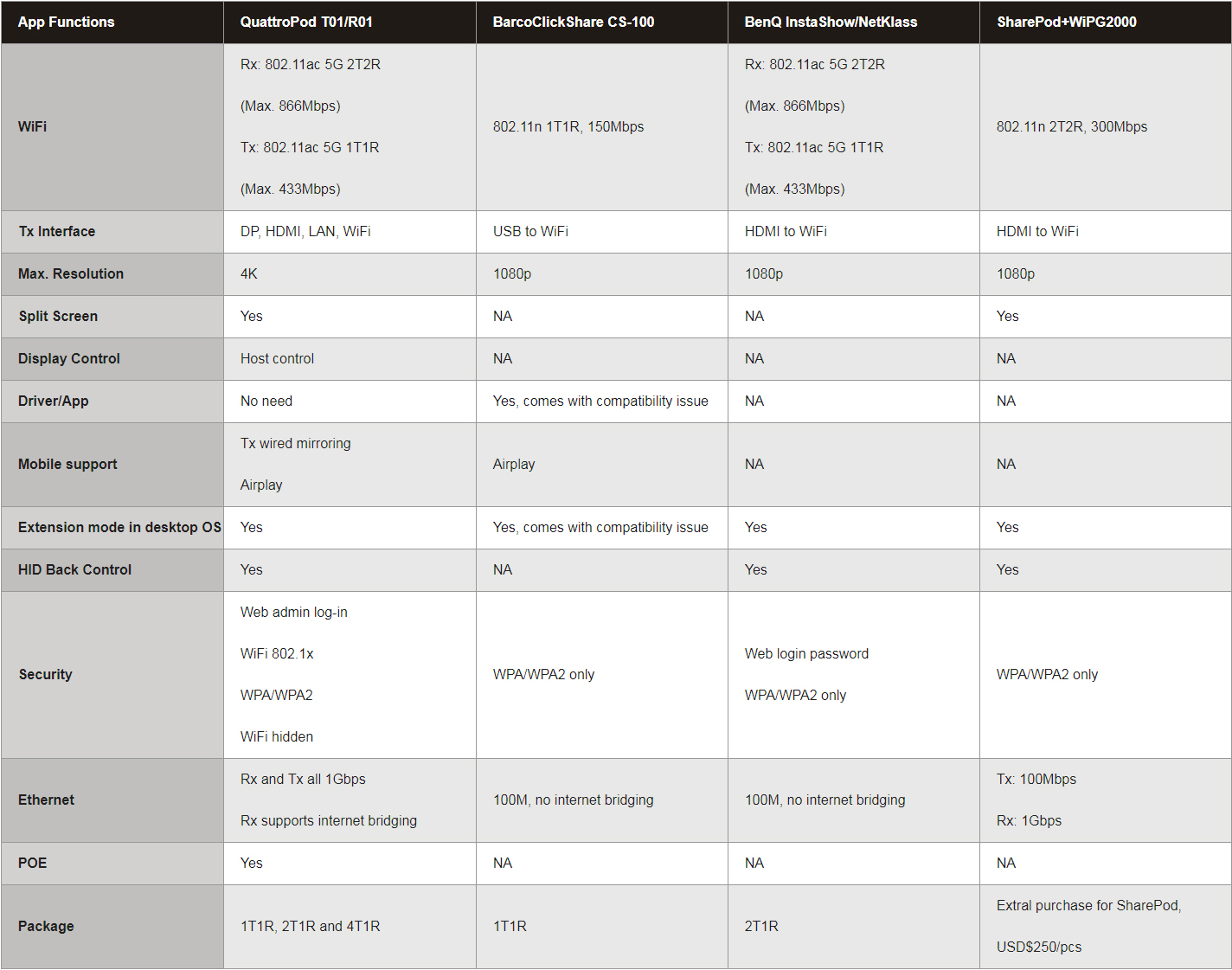

App Functions	QuattroPod T01/R01	BarcoClickShare CS-100	SharePod+WiPG2000	Pano	BenQ InstaShow/NetKlass
WiFi	Rx: 802.11ac 5G 2T2R (Max. 866Mbps) Tx: 802.11ac 5G 1T1R (Max. 433Mbps)	802.11n 1T1R, 150Mbps	802.11n 2T2R, 300Mbps	unknown	Rx: 802.11ac 5G 2T2R (Max. 866Mbps) Tx: 802.11ac 5G 1T1R (Max. 433Mbps)
Tx Interface	DP, HDMI, LAN, WiFi	USB to WiFi	HDMI to WiFi	No physical Tx, need leverage PC or mobile phone's WiFi	HDMI to WiFi
Max. Resolution	4K	1080p	1080p	4K	1080p
Split Screen	Yes	NA	Yes	Yes	NA
Display Control	Host control	NA	NA	NA	NA
Driver/App	No need	Yes, comes with compatibility issue	NA	NA	NA
Mobile support	Tx wired mirroring Airplay	Airplay	NA	Through Airplay/Miracast	NA
Extension mode in desktop OS	Yes	Yes, comes with compatibility issue	Yes	Through Airplay/Miracast	Yes
HID Back Control	Yes	NA	Yes	Yes	Yes
Security	Web admin log-in WiFi 802.1x WPA/WPA2 WiFi hidden	WPA/WPA2 only	WPA/WPA2 only	Web login password WPA/WPA2 only	Web login password WPA/WPA2 only
Ethernet	Rx and Tx all 1Gbps Rx supports internet bridging	100M, no internet bridging	Tx: 100Mbps Rx: 1Gbps	Gigabit Ethernet	100M, no internet bridging
POE	Yes	NA	NA	Yes	NA
Package	1T1R, 2T1R and 4T1R	1T1R	Extral purchase for SharePod, USD$250/pcs	Rx only	2T1R

App Functions

QuattroPod T01/R01

BarcoClickShare CS-100

SharePod+WiPG2000

Pano

BenQ InstaShow/NetKlass

WiFi

Rx: 802.11ac 5G 2T2R
(Max. 866Mbps)
Tx: 802.11ac 5G 1T1R
(Max. 433Mbps)

802.11n 1T1R, 150Mbps

802.11n 2T2R, 300Mbps

unknown

Rx: 802.11ac 5G 2T2R
(Max. 866Mbps)
Tx: 802.11ac 5G 1T1R
(Max. 433Mbps)

Tx Interface

DP, HDMI, LAN, WiFi

USB to WiFi

HDMI to WiFi

No physical Tx, need leverage PC or mobile phone's WiFi

HDMI to WiFi

Max. Resolution

1080p

Split Screen

Yes

Display Control

Host control

Driver/App

No need

Yes, comes with compatibility issue

Mobile support

Tx wired mirroring
Airplay

Airplay

Through Airplay/Miracast

Extension mode in desktop OS

Yes

Yes, comes with compatibility issue

Yes

Through Airplay/Miracast

Yes

HID Back Control

Yes

Security

Web admin log-in
WiFi 802.1x
WPA/WPA2
WiFi hidden

WPA/WPA2 only

Web login password
WPA/WPA2 only

Ethernet

Rx and Tx all 1Gbps
Rx supports internet bridging

100M, no internet bridging

Tx: 100Mbps
Rx: 1Gbps

Gigabit Ethernet

100M, no internet bridging

POE

Yes

Package

1T1R, 2T1R and 4T1R

1T1R

Extral purchase for SharePod, USD$250/pcs

Rx only

2T1R

成为合作伙伴

产品规格

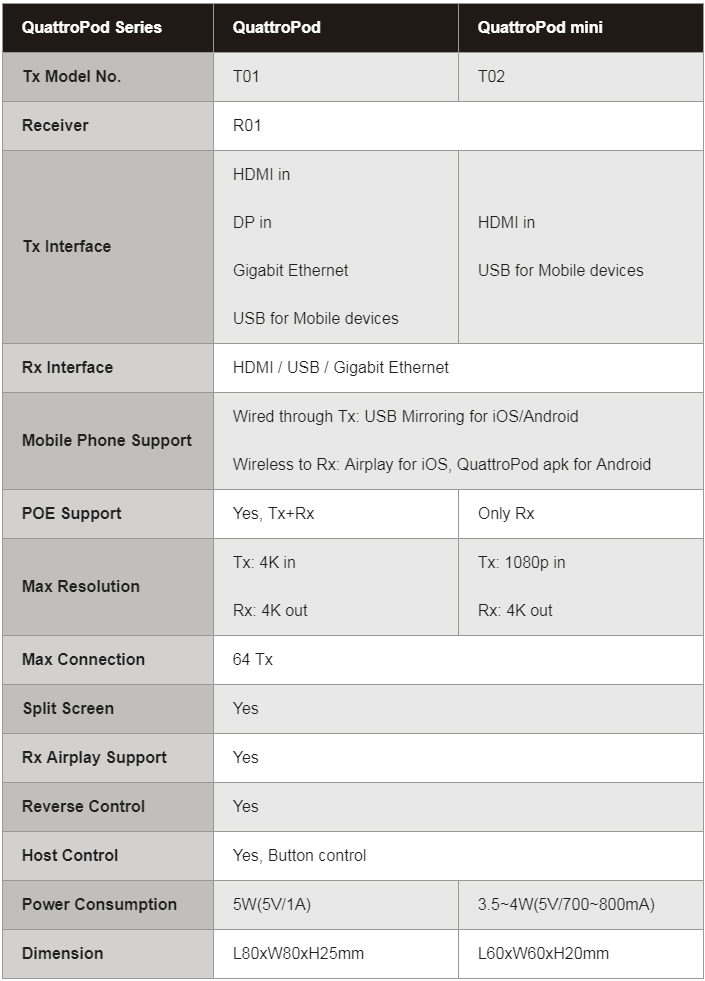

QuattroPod Series	QuattroPod	QuattroPod mini
Tx Model No.	T01	T02
Receiver	R01
Tx Interface	HDMI in DP in Gigabit Ethernet USB for Mobile devices	HDMI in USB for Mobile devices
Rx Interface	HDMI / USB / Gigabit Ethernet
Mobile Phone Support	Wired through Tx: USB Mirroring for iOS/Android Wireless to Rx: Airplay for iOS, QuattroPod apk for Android
POE Support	Yes, Tx+Rx	Only Rx
Max Resolution	Tx: 4K in Rx: 4K out	Tx: 1080p in Rx: 4K out
Max Connection	64 Tx
Split Screen	Yes
Rx Airplay Support	Yes
Reverse Control	Yes
Host Control	Yes, Button control
Power Consumption	5W(5V/1A)	3.5~4W(5V/700~800mA)
Dimension	L80xW80xH25mm	L60xW60xH20mm

QuattroPod Series

QuattroPod

QuattroPod mini

Tx Model No.

T01

T02

Receiver

R01

Tx Interface

HDMI in
DP in
Gigabit Ethernet
USB for Mobile devices

HDMI in
USB for Mobile devices

Rx Interface

HDMI / USB / Gigabit Ethernet

Mobile Phone Support

Wired through Tx: USB Mirroring for iOS/Android
Wireless to Rx: Airplay for iOS, QuattroPod apk for Android

POE Support

Yes, Tx+Rx

Only Rx

Max Resolution

Tx: 4K in
Rx: 4K out

Tx: 1080p in
Rx: 4K out

Max Connection

64 Tx

Split Screen

Yes

Rx Airplay Support

Yes

Reverse Control

Yes

Host Control

Yes, Button control

Power Consumption

5W(5V/1A)

3.5~4W(5V/700~800mA)

Dimension

L80xW80xH25mm

L60xW60xH20mm
